Structure of a wireless sensor network

Structure of a Wireless Sensor Network includes different topologies for radio communications networks.

Star network (single point-to-multipoint):

A star network is a communications topology where a single base station can send and/or receive a message to a number of remote nodes. The remote nodes are not permitted to send messages to each other. The advantage of this type of network for wireless sensor networks includes simplicity, ability to keep the remote node’s power consumption to a minimum. It also allows low latency communications between the remote node and the base station. The disadvantage of such a network is that the base station must be within radio transmission range of all the individual nodes.

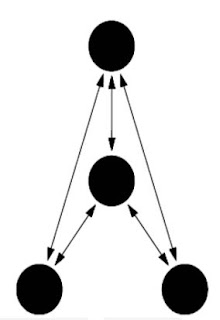

                                                           A Star network topology

 Mesh network:

A mesh network allows transmitting data to one node to other nodes in the network that is within its radio transmission range. This allows for what is known as multi-hop communications, that is, if a node wants to send a message to another node that is out of radio communications range, it can use an intermediate node to forward the message to the desired node. This network topology has the advantage of redundancy and scalability. If an individual node fails, a remote node still can communicate to any other node in its range, which in turn, can forward the message to the desired location. In addition, the range of the network is not necessarily limited by the range in between single nodes; it can simply be extended by adding more nodes to the system. The disadvantage of this type of network is in power consumption for the nodes.

Hybrid star – Mesh network: A hybrid between the star and mesh network provides a robust and versatile communications network, while maintaining the ability to keep the wireless sensor nodes power consumption to a minimum. In this network topology, the sensor nodes with the lowest power are not enabled with the ability to forward messages. This allows for minimal power consumption to be maintained. However, other nodes on the network are enabled with multi-hop capability, allowing them to forward messages from the low power nodes to other nodes on the network. This is the topology implemented by the up and coming mesh networking standard known as ZigBee.
